Anti-glare design for cover.
Driver: OSRAM 12/220-240/300S LPF
Reflector angle:
No flicker.
High PF.
Surge:1.5KV.
Lifes:30000H.
Warranty: 5
years
|
Name:
|
Ceiling Downlight
|
|
Modle：
|
DLED9212
|
|
Power：
|
12W
|
|
LED Source
|
SMD 2835
|
|
Input Votage:
|
AC220～240V
|
|
Power factor:
|
0.9
|
|
surge:
|
1.5KV
|
|
Ra:
|
≥90
|
|
SDCM:
|
＜5
|
|
CCT：
|
3000/4000/6000K
|
|
Lumen:
|
1200lm
|
|
LM/W:
|
100lm/w
|
|
Size(mm):
|
φ114x46mm
|
|
Lifes:
|
30000H
|
|
IP rate:
|
IP40
|
|
LED Beam angle:
|
100
|
|
Certificate:
|
CE,ROHS,SAA,SASO
|
|
cut-out:
|
φ110mm
|
|
Dimmable:
|
NO
|
|
Sensor:
|
/
|
|
Emergency:
|
|
|
Lamp Body Color
|
Matt White + Grey
|
|
Material
|
ADC12
|
|

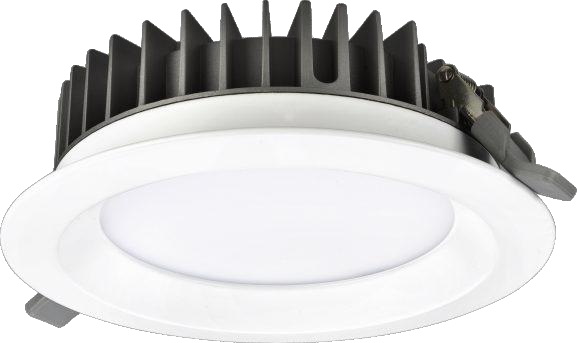

LED Ceililng Downlight
STYLE: DLED9212
Packing
and Leadtime:
Packing Details:
--- one
in each printed inner box
--- 36pcs
in one carton or customized.
---
Carton Size: 390x325x530mm
--- Gross
Weight of One Carton: 15.2KG
--- Single inner box size: 150X60X170mm
--- Single item net weight: 0.289kg/pc.
Lead Time:
|
Quantity(Pieces)
|
1 - 2
|
3 - 100
|
101 - 500
|
>500
|
|
Est.
Time(days)
|
15
|
20
|
30
|
To be negotiated
|
|
Delivery: 20-30 days
|
|
|
|
|
*One pcs in customized printed inner box or normal carton color box.
(customized
printed color box MOQ 3000 pcs)
|
Use Die-cast Aluminum
as a material.
Anti-glare design for cover.
Driver: OSRAM 12/220-240/300S LPF
Reflector angle:
No flicker.
High PF.
Surge:1.5KV.
Lifes:30000H.
Warranty: 5
years
|
Name:
|
Ceiling Downlight
|
|
Modle：
|
DLED9212
|
|
Power：
|
12W
|
|
LED Source
|
SMD 2835
|
|
Input Votage:
|
AC220～240V
|
|
Power factor:
|
0.9
|
|
surge:
|
1.5KV
|
|
Ra:
|
≥90
|
|
SDCM:
|
＜5
|
|
CCT：
|
3000/4000/6000K
|
|
Lumen:
|
1200lm
|
|
LM/W:
|
100lm/W
|
|
Size(mm):
|
φ114x46mm
|
|
Lifes:
|
30000H
|
|
IP rate:
|
IP40
|
|
LED Beam angle:
|
100
|
|
Certificate:
|
CE,ROHS,SAA,SASO
|
|
cut-out:
|
φ110mm
|
|
Dimmable:
|
NO
|
|
Sensor:
|
/
|
|
Emergency:
|
|
|
Lamp Body Color
|
Matt White + Grey
|
|
Material
|
ADC12
|
|
Applicable Accessories
|
|
|
