Model:DLED9230          Product parameters


Anti-glare design for cover.
Driver:  OSRAM 28/220-240/700  G3

Reflector angle:

No flicker.
High PF.
Surge:1.5KV.
Lifes:30000H.

Warranty:  5 years







Name:

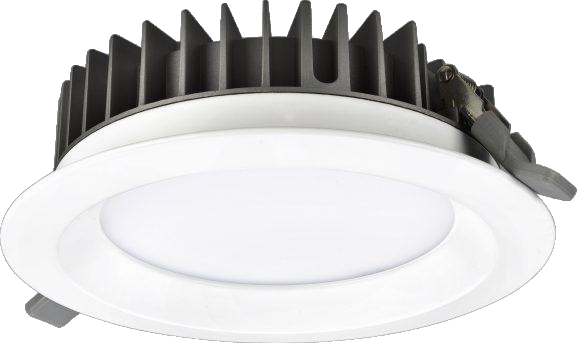

Ceiling Downlight

Modle

DLED9230

Power

30W

LED Source

SMD 2835

Input Votage:

AC220240V

Power factor:

0.9

surge:

1.5KV

Ra:

90

SDCM:

5

CCT

3000/4000/6000K

Lumen:

 3000lm

LM/W:

 100lm/w

Size(mm):

φ218x55mm

Lifes:

30000H

IP rate:

IP40

LED Beam angle:

100

Certificate:

CE,ROHS,SAA,SASO

cut-out:

φ200mm

Dimmable:

NO

Sensor:

/

Emergency:



Lamp Body Color

Matt White + Grey

Material

ADC12

Applicable Accessories


LED Ceililng Downlight

STYLE: DLED9230

Packing and Leadtime:

 Packing Details:

--- one in each printed inner box

--- 18pcs in one carton or customized.



--- Carton Size:  570x480x240mm

--- Gross Weight of One Carton: 17.5KG

--- Single inner box size:  230x60x220mm

--- Single item net weight:  0.741kg/pc.



 Lead Time:

Quantity(Pieces)

1 - 2

3 - 100

101 - 500

>500

Est. Time(days)

15

20

30

To be negotiated

Delivery:  20-30 days











*One pcs in customized printed inner box or normal carton color box.

(customized printed color box MOQ 3000 pcs)
